V10-150 CDI Instructions for use

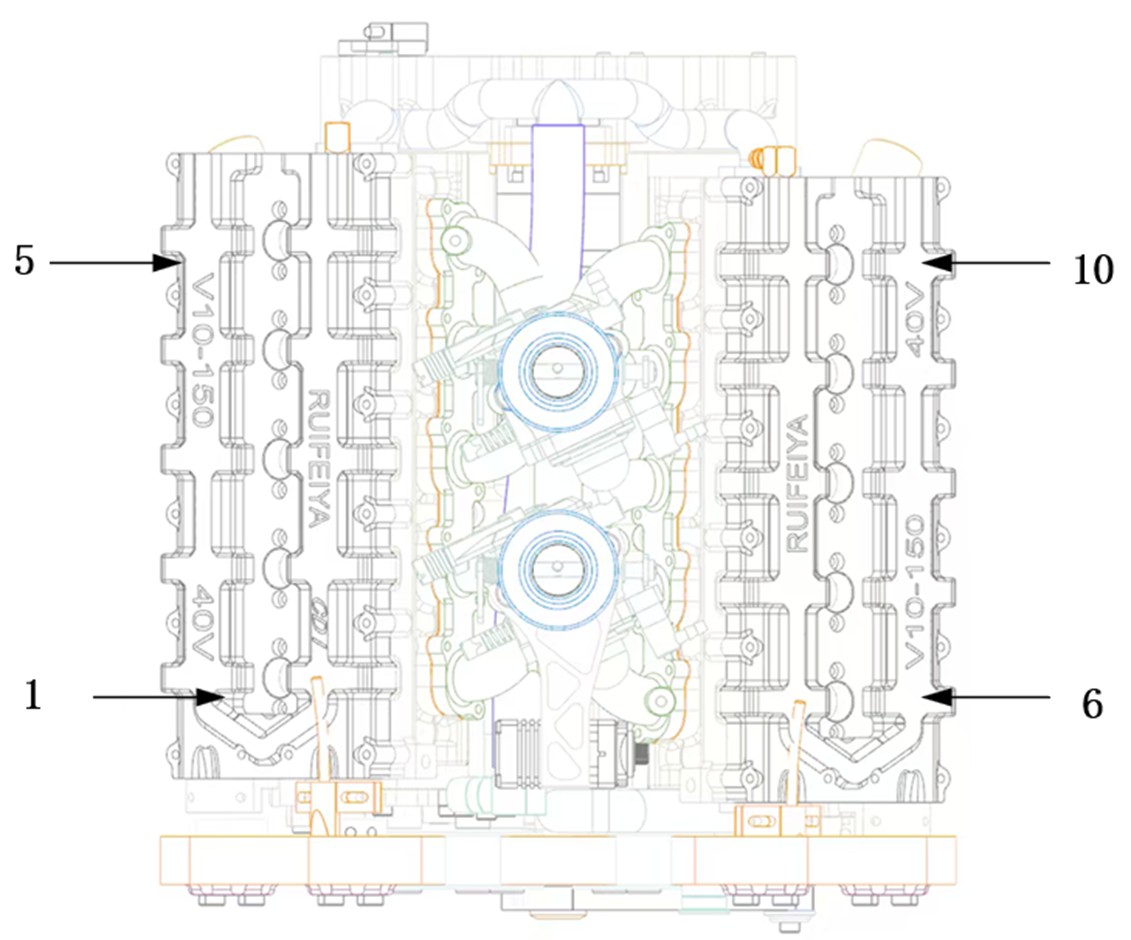

1、The ignition sequence of the engine

Facing the engine belt, from inlet to outlet on the left are cylinders 1, 2, 3, 4, and 5.

Facing the engine belt, from inlet to outlet on the right are cylinders 6, 7, 8, 9, and 10.

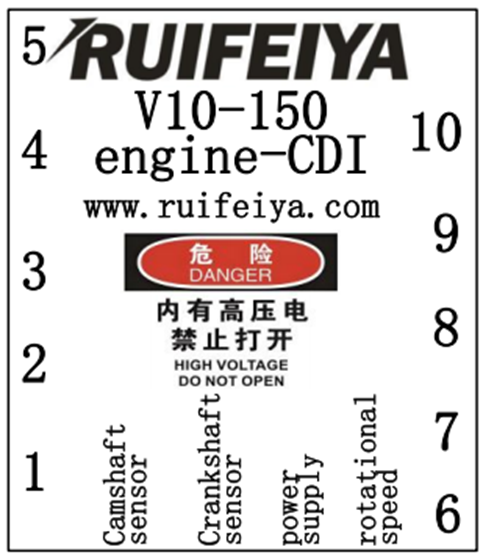

2、 CDI ignition system sequence

With the CDI ignition system module connector facing down, facing the cable connector end, from near to far on the left are cylinders 1, 2, 3, 4, and 5. With the CDI ignition system module connector facing up, facing the cable connector end, from near to far on the right are cylinders 6, 7, 8, 9, and 10.
